Place of Origin:
Shandong,China
Brand Name:
FULLWIN
Certification:
EPA/Euro5
Model Number:
FW10F
Contact Us
Features:
1. Option: KOOP diesel engine / Briggs&Stratton gasoline engine
2. Support both mechanical and hydraulic operation
3. Only 3 feet wide, pass through narrow spaces, even doorways
4. Zero - tail swing, flexible action
5. Swing boom and retractable undercarriage are options
Description:

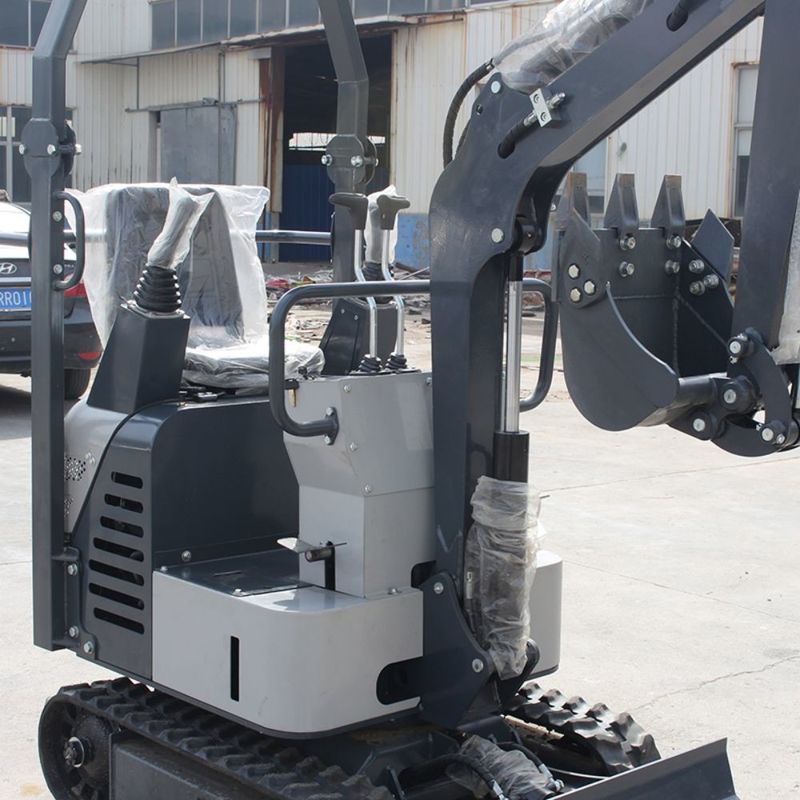

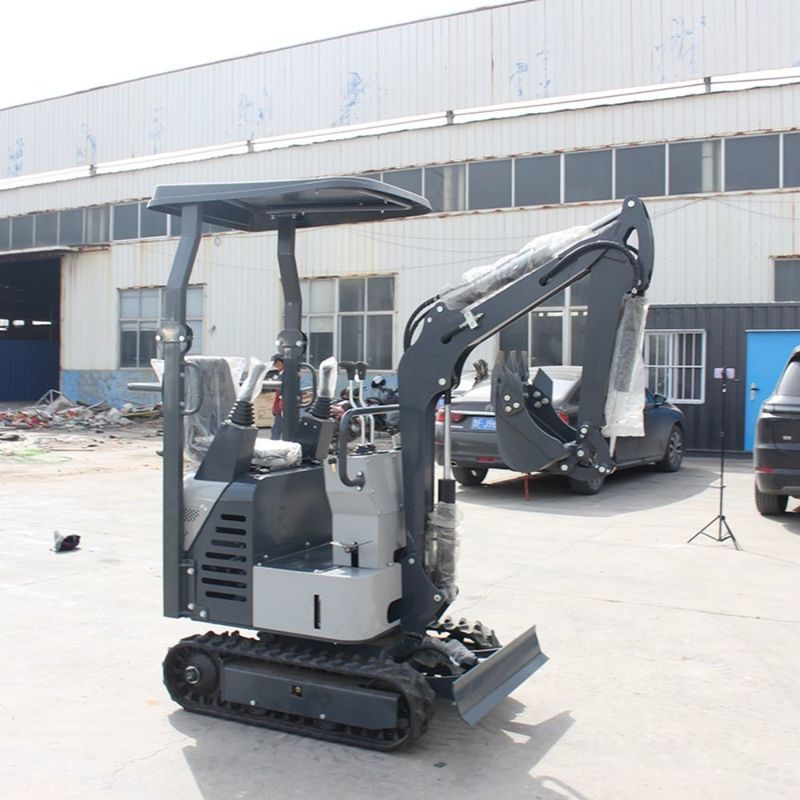

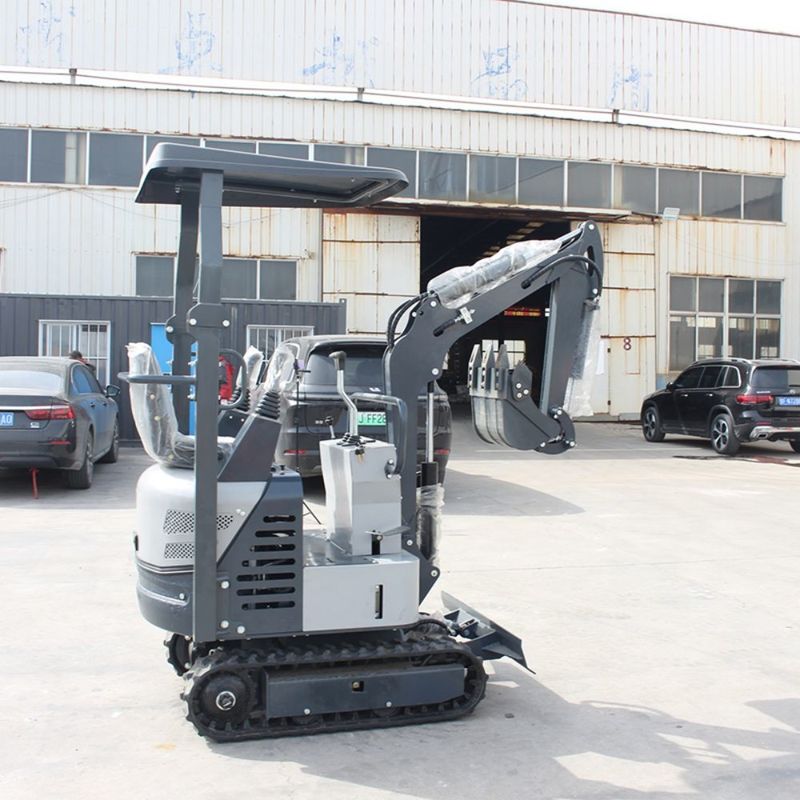

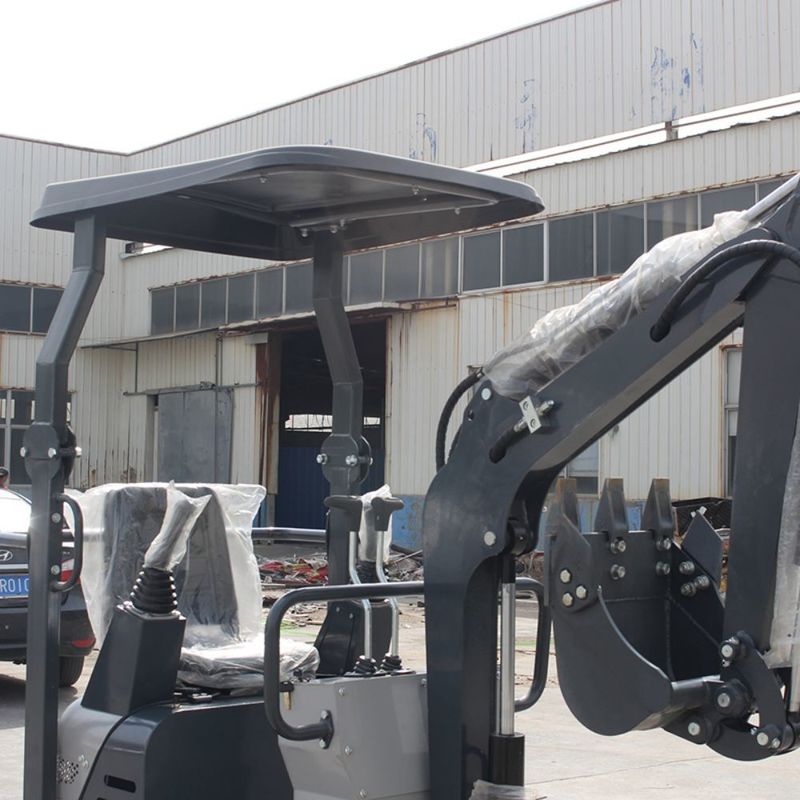

FW10F - 1000KG operating weight Mini Excavator Digger is best-selling among many 1ton models
It's totally zero - tail swing, which is cater to the market
Machine weight is totally 950KG, heavier than normal 1ton diggers
Counterweight is full 50KG, better stability than normal 1ton mini excavators
FW10F 1TON Mini Excavator focus on detail processing, hydraulic oil radiator, cooling fan, hose protection,
hydraulic shut-off valves, oil gauge, safety lock, and blade-like bucket side teeth, etc.
| MODEL | FW10F |
|
Diesel Engine |
KOOP, Euro5 Certified |
|
Gasoline Engine |
Briggs&Stratton, Euro5 Certified |
|
Rated Power |
7KW/3000RPM |
|
Machine Weight |
950KG |
|
Operating Weight |
1000KG |
|
Bucket Capacity |
0.025m³ |
|
Bucket Width |
400mm |
|
Travel Speed |
3km/h |
|
Operation Mode |
Mechanical/Hydraulic Operation |
|
Gradeability |
30° |
|
Fuel Tank Capacity |
10L |
|
Hydraulic Oil Tank Capacity |
16L |
|
Dimension (L*W*H) |
2200*930*2250mm |
|
Wheelbase |
910mm |
|
Max.Digging Depth |
1630mm |
|
Max.Vertical Digging Depth |
1370mm |
|
Max.Digging Height |
2750mm |
|
Max.Unloading Height |
1960mm |
|
Max.Digging Radius |
2900mm |
|
Max.Ground Level Digging Distance |
2100mm |
|
Min.Radius of Gyration |
1300mm |
|
Dozer Blade Max.Cutting Depth |
210mm |
|
Dozer Blade Max.Lifting Height |
180mm |
FAQ:
1. What's your MOQ?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. How about your delivery time?
Usually, we have some stock for trial or small orders, so just deliver within 7 days, while 15-25 days for large orders and
customized products.
3. How about payment?
100% T/T in advance before shipment.
4. Do you provide samples? Is it free or extra?
Yes, we could offer the sample, but it's not free.
5. Could you make it according to our special requirements?
Of course, please tell us your ideas.
Send your inquiry directly to us
