Place of Origin:
Shandong Province, China
Brand Name:
FULLWIN
Certification:
CE; EPA; Euro V
Model Number:
FW40J
Contact Us
Features:
1. KUBOTA D1703, 18.5KW/25HP
2. Spacious cabin with A/C and heater

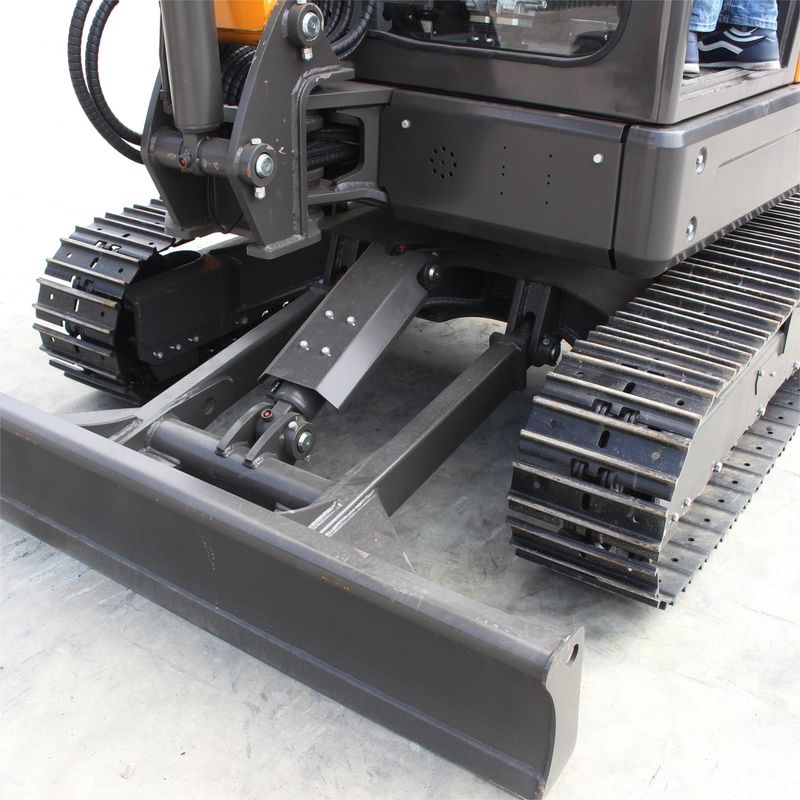

3. 300mm wide steel tracks as standard
4. Smooth hydraulic pilot controls
5. Totally zero-tail swing
Descriptions:
1. Engine compartment well put together, using enhanced cooling fan to increase cooling efficiency
2. Famous brand hydraulic system parts ensure the stable quality.
3. Equipped with double fuel filters to guarantee fuel purity to protect engine
4. Extra hydraulic line for various attachments.

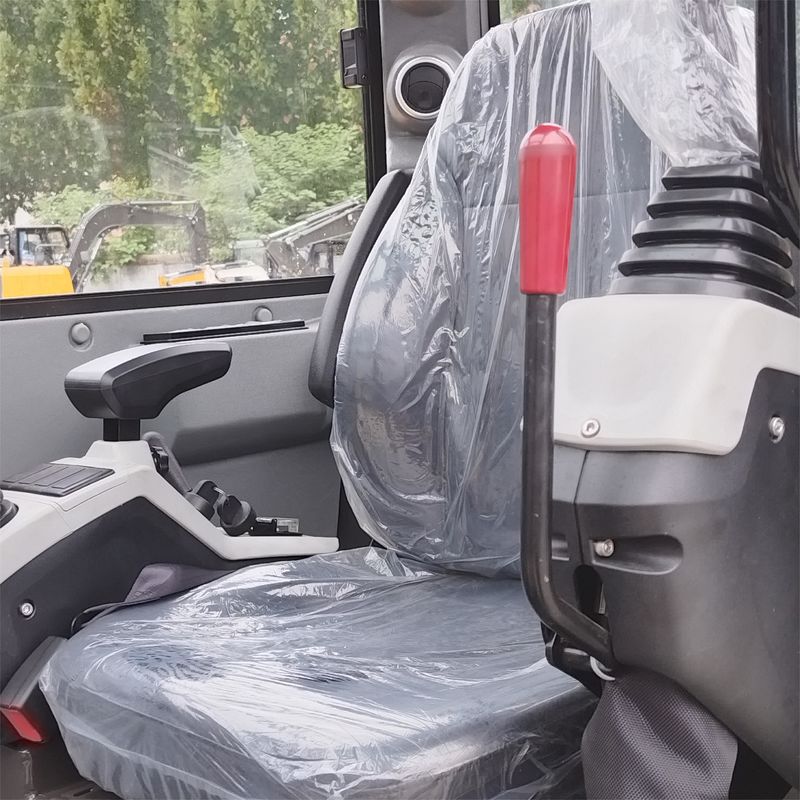

5. Spacious cabin, maximum headroom and legroom and Panoramic serviceability
6. Korean pilot control joysticks are easy to operate
Parameters:
| Model | FW40J |
| Engine | |
| Engine Make/Model | KUBOTA D1703 |
| No. of Cylinders | 3 |
| Rated Power | 18.5KW/25HP |
| Emission Standard | EPA/Euro5 |
| Performance | |
| 2-Speed Travel | 4.4/2.4km/h |
| Gradeability | 30° |
| Machine Weight | 3810KG |
| Operating Weight | 4000KG |
| Dimensions | |
| Length | 4915mm |
| Width | 1720mm |
| Height with Cabin | 2524mm |
| Operation Range | |
| Max. Digging Radius | 5480mm |
| Max. Digging Depth | 3208mm |
| Max. Digging Height | 4800mm |
| Max. Dumping Height | 3406mm |
FAQ:
1. What's your MOQ?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. How about your delivery time?
Usually, we have some stock for trial or small orders, so just deliver within 7 days, while 15–25 days for
large orders and customized products.
3. How about payment?
100% T/T in advance before shipment.
4. Do you provide samples? Is it free or extra?
Yes, we could offer the sample, but it's not free.
5. Could you make it according to our special requirements?
Of course, please tell us your ideas.
Pictures:
